Description

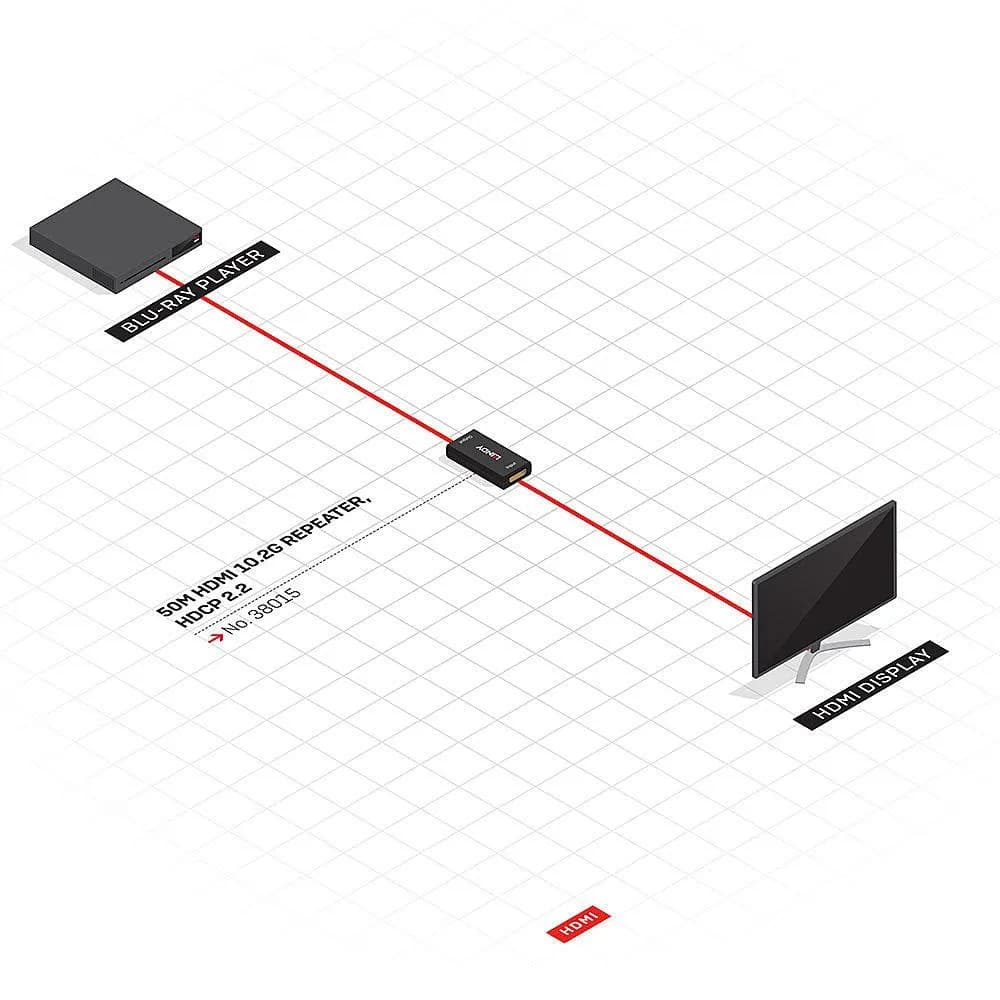

• Repeats HDMI signals over 50m - connects two HDMI cables together to make longer transmission distances
• Supports resolutions of 1920x1080p@60Hz over 50m and 3840x2160p@60Hz 4:2:0 over 35m
• Powered from the HDMI interface, no external power required
• HDCP Pass-through

Technical details

Specifications

• AV Interface: HDMI
• Interface Standard: HDMI 1.4
• Supported Bandwidth: 10.2 Gbps
• Maximum Distance:
  • 35m (114.83ft) 3840x2160@60Hz 4:2:0 8bit
  • 35m (114.83ft) 3840x2160@30Hz 4:4:4 8Bit
  • 50m (164.04ft) 1920x1080@60Hz 4:4:4 8bit
• Maximum Input Distance:
  • 15m (49.21ft) - 3840x2160@60Hz 4:2:0 8bit
  • 15m (49.21ft) - 3840x2160@30Hz 4:4:4 8bit
  • 20m (65.62ft) - 1920x1080@60Hz 4:4:4 8bit
• Maximum Output Distance:
  • 20m (65.62ft) - 3840x2160@60Hz 4:2:0 8bit
  • 20m (65.262t) - 3840x2160@30Hz 4:4:4 8bit
  • 30m (98.42ft) - 1920x1080@60Hz 4:4:4 8bit
• Maximum Resolution: 3840x2160@60Hz 4:2:0 8bit
• HDCP Support: Pass-through
• Transmission Medium: 2 x HDMI Cable
• Special Features: -



Connectors

• Input: HDMI (Female)
• Output: HDMI (Female)
• Power: -



Physical Properties

• Dimensions WxHxD: 50x27x15mm (1.97x1.06x0.59in)
• Housing Material: ABS Plastic
• Net Weight: 0.015kg (0.03lb)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 20-90% RH (non-condensing)
• Power Requirements: -
• Colour: Black



Miscellaneous

• Packaging Type: Carton box
• Packaging Dimensions: 115x76x31mm (4.53x2.99x1.22in)
• Gross Weight: 0.095kg (0.21lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS & REACH



Package Contents

• HDMI Repeater
• Lindy Manual
