Lifecycle

Obsolete Date 31-01-2027

Specifications

Interface NVMe
Workload Mixed Use
Drive form factor SFF
Carrier type Basic Carrier
Capacity 1.6 TB
Height 15 mm
Read IOPS Random Read IOPS (4KiB, Q=16)=220,000, Max Random Read IOPS (4KiB)=1,250,000@Q256
Plug type Hot pluggable
Endurance DWPD (Drive Writes Per Day) 3
Power (Watts) 15.1
Platform supported HPE Compute Mainstream Platforms, see QuickSpecs for more information
Write IOPS Random Write IOPS (4KiB, Q=16)=270,000, Max Random Write IOPS (4KiB)=280,000@Q64
Lifetime writes 8,760
Warranty HPE Solid State Drives and Add-In Cards have a standard 3/0/0 warranty; Customer Self Repair (CSR) subject to maximum usage limitations. Maximum usage limit is the maximum amount of data that can be written to the drive. Drives that have reached this limit will not be eligible for warranty coverage.

Quickspecs

Overview

Do you need to accelerate the performance of your mixed use applications? HPE NVMe High Performance Mixed Use (MU) Solid State Drives (SSDs) are best suited for high I/O applications that require a balanced performance between reads and writes to deliver high performance and endurance for data-intensive applications. NVMe High Performance MU SSDs communicate directly to applications via the PCIe bus to boost I/O bandwidth and reduce latency. HPE NVMe High Performance MU SSDs deliver high performance and lower latency data transfers from storage significantly faster than SAS or SATA SSDs. They utilize the high bandwidth of PCIe Gen4 in select servers for mixed use workloads such as Big Data analytics, high-performance computing (HPC), and virtualization.

What's new

Offering 1.6 TB, 3.2 TB, and 6.4 TB HPE NVMe High Performance Mixed Use SFF SSDs.

Features

HPE NVMe High Performance Mixed Use (MU) Solid State Drives are ideal for Big Data analytics, cloud computing, high performance compute, business intelligence, database applications, and virtualization.

High Performance, Exceptional Reliability, and Efficiency for Faster Business Results

HPE NVMe PCIe Gen4 U.3 Dynamic SSDs are 100% backwards compatible with NVMe U.2 SSD backplanes on selected HPE ProLiant servers.

HPE Continues to Enhance its SSD Portfolio by Offering NVMe PCIe Gen4 U.3 SSDs

HPE NVMe PCIe Gen4 U.3 SSDs deliver higher performance for server-storage solutions to better meet the challenges within high performance workloads.

Maintain data accuracy with full data-path error detection.

Choose from a broad portfolio of enhanced solutions in a wide variety of capacities.

Achieve higher IOPS and lower latency to enhance the performance of your data center.

Compatible products

Documents

HPE Solid State Disk Drives QuickSpecs

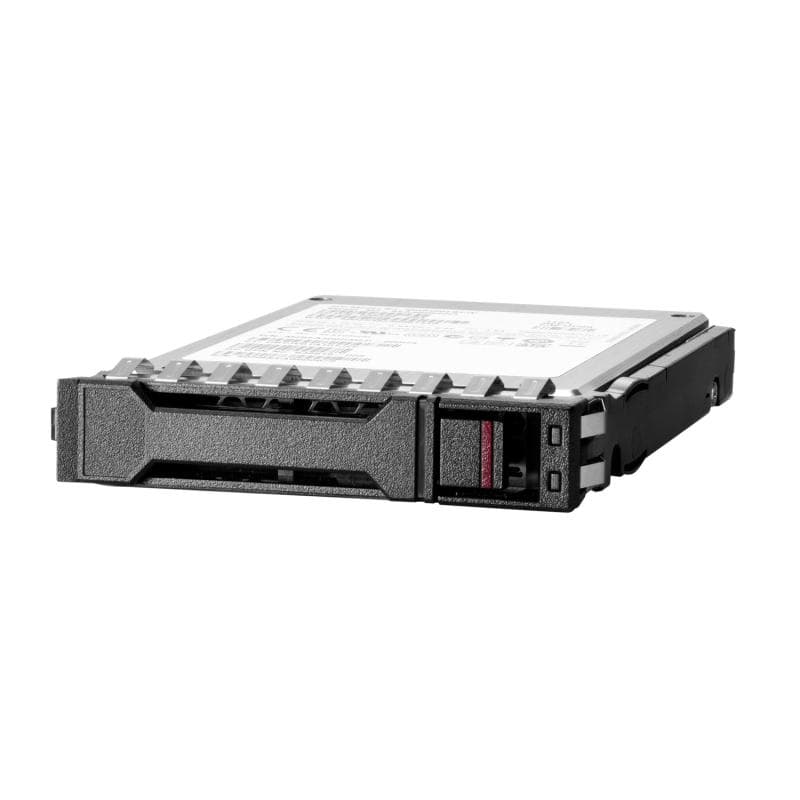

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a SSD
