Lifecycle

Obsolete Date 31-01-2027

Specifications

Interface NVMe
Workload Read Intensive
Drive form factor SFF
Carrier type Basic Carrier
Capacity 1.92 TB
Height 15 mm
Read IOPS Random Read IOPS (4KiB, Q=16)=220,000, Max Random Read IOPS (4KiB)=1,250,000@Q256
Plug type Hot Pluggable
Endurance DWPD (Drive Writes Per Day) 1
Power (Watts) 15.1
Lifetime writes 3,504
Platform supported HPE Compute Mainstream Platforms, see QuickSpecs for more information
Write IOPS Random Write IOPS (4KiB, Q=16)=125,000, Max Random Write IOPS (4KiB)=130,000@Q4
Warranty HPE Solid State Drives and Add-In Cards have a standard 3/0/0 warranty; Customer Self Repair (CSR) subject to maximum usage limitations. Maximum usage limit is the maximum amount of data that can be written to the drive. Drives that have reached this limit will not be eligible for warranty coverage.

Quickspecs

Overview

Do you need to accelerate the performance of your read intensive applications? HPE NVMe High Performance Read Intensive (RI) Solid State Drives (SSDs) are best suited for applications requiring a strong blend of high read IOPS, low latency, and high endurance at a strong price point. NVMe SSDs communicate directly with applications via the PCIe bus to boost I/O bandwidth and reduce latency. HPE NVMe High Performance RI SSDs provide high-performance data transfers from storage at rates faster than SAS or SATA SSDs. They are designed to utilize the high bandwidth of PCIe Gen4 in select servers for read-heavy workloads such as read caching, web servers, and boot/swap.

What's new

Offering 1.92 TB, 3.84 TB, 7.68 TB, and 15.36 TB HPE NVMe High Performance Read Intensive SFF SSDs.

Features

HPE NVMe High Performance Read Intensive (RI) Solid State Drives (SSDs) are ideal for read caching, social media, bulk storage, email, and boot/swap.

High Performance, Exceptional Reliability, and Efficiency for Faster Business Results

HPE NVMe PCIe Gen4 U.3 SSDs deliver higher performance for server-storage solutions to better meet the challenges within high performance workloads.

HPE NVMe PCIe Gen4 U.3 Dynamic SSDs are 100% backwards compatible with NVMe U.2 SSD backplanes on selected HPE ProLiant servers.

HPE Continues to Enhance its SSD Portfolio by Offering NVMe PCIe Gen4 U.3 SSDs

Maintain data accuracy with full data-path error detection.

Choose from a broad portfolio of enhanced solutions in a wide variety of capacities.

Achieve higher IOPS and low latency to enhance the performance of your data center.

Compatible products

Documents

HPE Solid State Disk Drives QuickSpecs

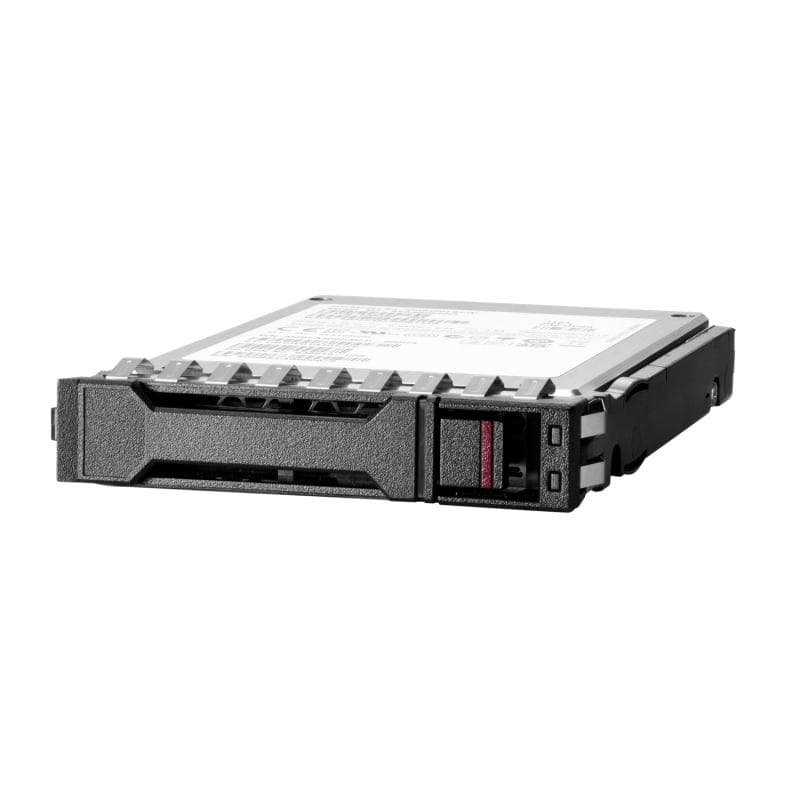

HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PM1733a SSD
