Lifecycle

Obsolete Date 30-09-2028

Specifications

Height 15mm
Power (Watts) 16.89
Lifetime writes 17,121
Write IOPS Random Write IOPS (4KiB, Q=16) 160,000 Max Random Write IOPS (4KiB) 160,000@Q16
Read IOPS Random Read IOPS (4KiB, Q=16)= 145,000 Max Random Read IOPS (4KiB)=155,000@Q64
Plug type Hot pluggable
Platform supported HPE Compute Mainstream Platforms, see QuickSpecs for more information
Endurance DWPD (Drive Writes Per Day) 3
Drive form factor SFF
Carrier type Basic Carrier
Capacity 3.2 TB
Interface SAS
Workload Mixed Use
Warranty HPE Solid State Drives and Add-In Cards have a standard 3/0/0 warranty; Customer Self Repair (CSR) subject to maximum usage limitations. Maximum usage limit is the maximum amount of data that can be written to the drive. Drives that have reached this limit will not be eligible for warranty coverage.

Quickspecs

Overview

Do you need to accelerate the performance of your mixed use applications? HPE SAS Mixed Use (MU) Solid State Drives (SSDs) deliver high performance and endurance for applications requiring high read and write IOPS performance. HPE Enterprise SAS MU SSDs transfer data at full duplex (bidirectional) allowing greater I/O bandwidth to alleviate bottlenecks at quadruple the 6Gb interface of SATA drives. HPE Enterprise SAS MU SSDs are best suited for mission-critical applications requiring a balanced mix of read and write I/O to deliver significantly faster data transfers from storage than SATA SSDs. HPE SAS MU SSDs are ideal for big data analytics, high performance compute and virtualization workloads. SAS technology continues to be the interface of choice for many workloads for its reliability and 24x7 operation in the enterprise data center.

What's new

Offering 800 GB, 1.6 TB, 3.2 TB, and 6.4 TB storage capacities on selected models of HPE SAS SSDs.

Features

HPE SAS Mixed Use (MU) SSDs are ideal for big data analytics, cloud computing, high performance compute, database applications and virtualization.

Choose from a broad portfolio of enhanced solutions in a wide variety of capacities.

Achieve higher IOPS and lower latency to enhance the performance of your data center.

Enable up to 24 Gb Max performance when combined with appropriate backplanes.

Maintain data accuracy with full data-path error detection and surprise power loss protection.

High Performance, Exceptional Reliability, and Efficiency for Faster Business Results

Compatible products

Documents

HPE Solid State Disk Drives QuickSpecs

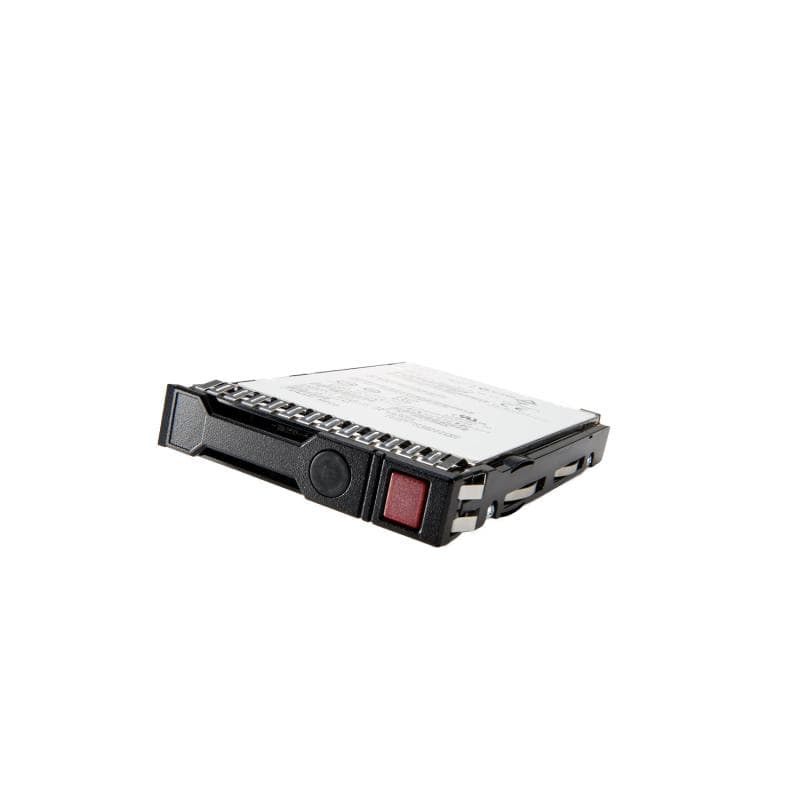

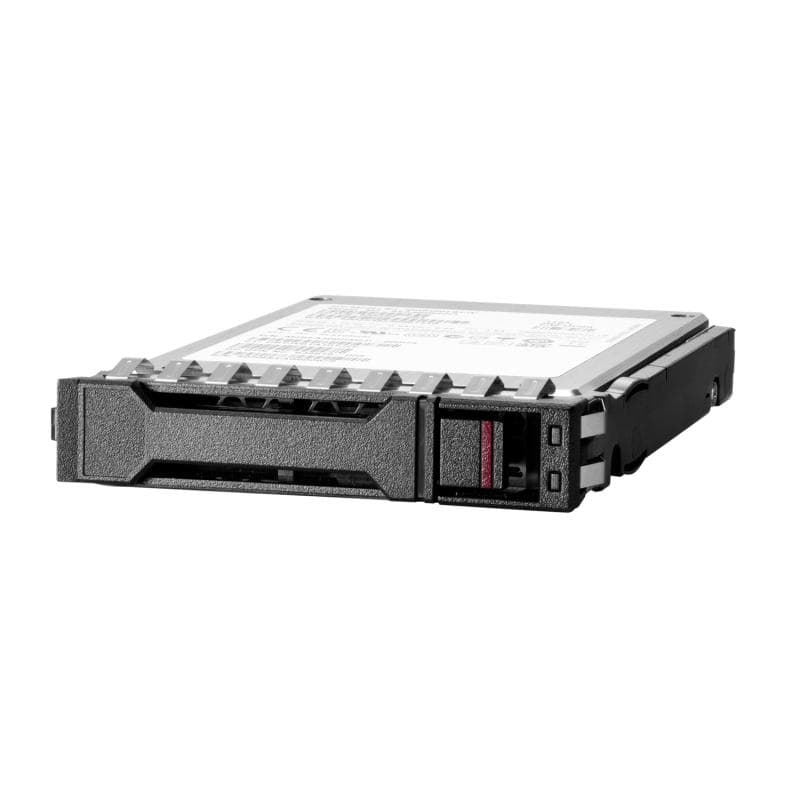

HPE 3.2TB SAS 24G Mixed Use SFF BC Multi Vendor SSD
