ARUBA NETWORKS

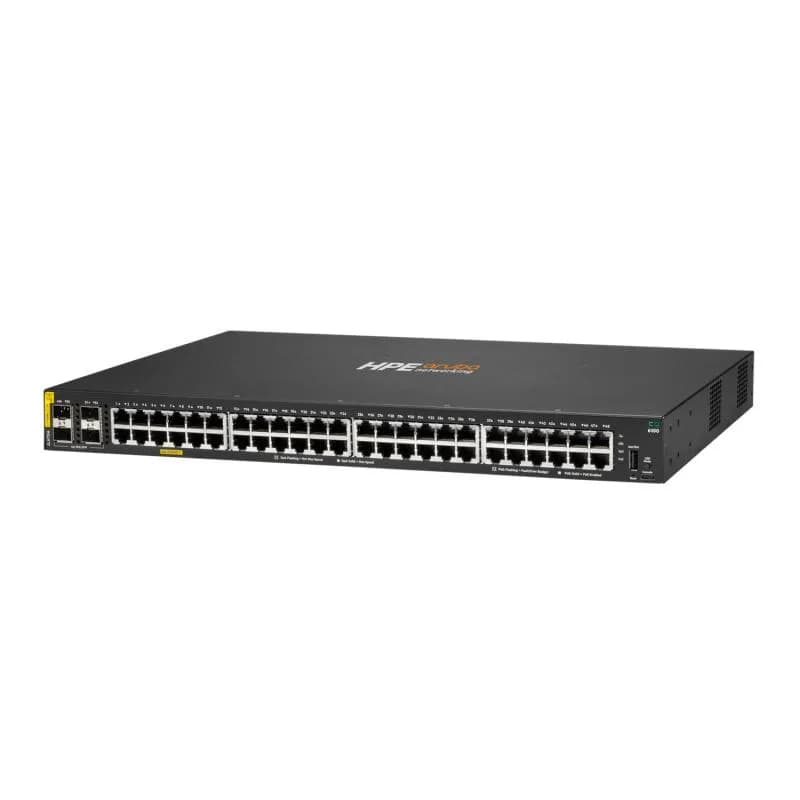

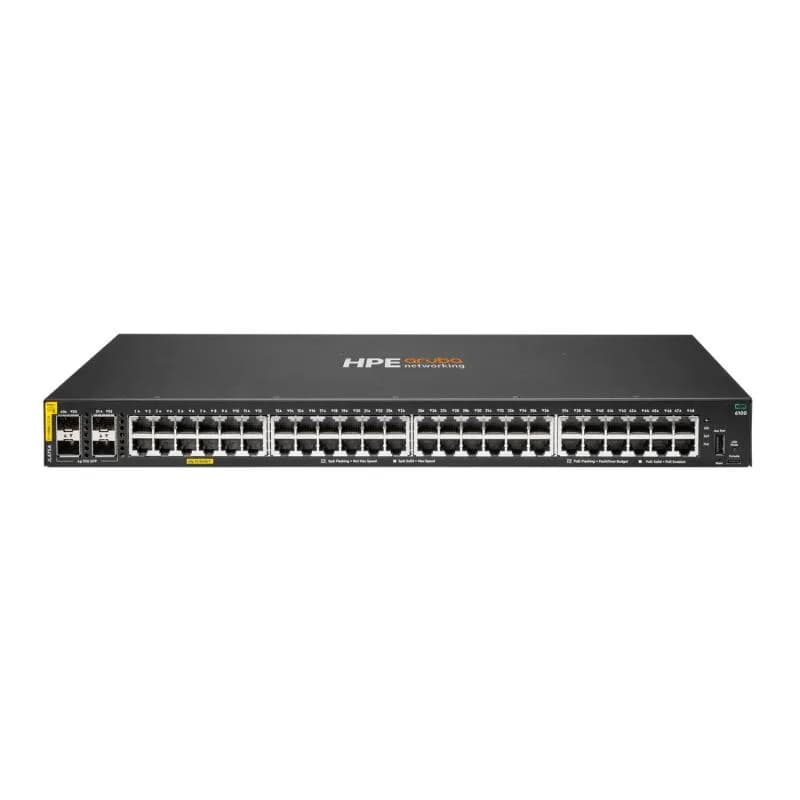

HPE Aruba Networking CX 6100 48G Class4 PoE 4SFP+ 370W Switch

Name: HPE Aruba Networking CX 6100 48G Class4 PoE 4SFP+ 370W Switch
Brand: ARUBA NETWORKS
SKU: JL675A
Price: 12187.99 RON
Availability: InStock

Cod: JL675AEAN: 190017348001

Aruba 6100 48G CL4 4SFP+ Swch

12.187,99 RON

TVA inclus

În stoc

Termen de livrare: estimat 2026-09-30

Livrare expres prin FAN Courier sau GLS

Drept de retur în 14 zile calendaristice

Garanție: 999 luni (pers. fizice) · 12 luni (pers. juridice)

Lifecycle

Obsolete Date 31-12-2099
End of support date 31-12-2104

Specifications

Operating temperature Maximum of 32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate by 1°C for every 1000 ft (305m) from 5000 ft (1.5 km) to 10000 ft (3.0 km)
Power supply Fixed power supply
Fans Fixed fans
Throughput 98.6 Mpps
Switching capacity 176 Gbps
Ports 48 x 10/100/1000BASE-T ports 4 x 1G/10G SFP ports Supports PoE standards IEEE 802.3af, 802.3at 1 x USB-C console port 1 x USB Type-A host port
Latency 1 Gbps: 1.9 μSec , 10 Gbps: 1.8 μSec
Power consumption Max. Power (w/o PoE): 45W Max. Power (w/ PoE): 480W
Warranty Limited lifetime warranty. See the warranty duration.
Memory and processor Dual Core ARM Cortex A9 @ 1016 Mhz 4 GB DDR3, maximum, depending on model 16 GB eMMC
Input voltage 100–127 VAC / 200–240 VAC
PoE capability 370W Class 4 PoE/PoE+
Management features Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software

Quickspecs

Overview

The HPE Aruba Networking CX 6100 Switch Series is a modern family of entry-level access switches ideal for branch offices, mid-market enterprises, and SMB networks. Designed for reliable, simple, and secure access, this switch family provides a convenient wired access solution for enterprise networks supporting Internet of Things (IoT), mobile, and cloud applications. Prepare your network for future demands with a powerful ASIC and the programmable HPE Aruba Networking CX Switch Operating System to deliver a more consistent, more efficient operator experience. This Layer 2 switch series has convenient built-in high speed uplinks with up to 740W of IEEE 802.3at Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless 12-port model is ideal for use in quiet workspaces. With robust quality of service (QoS), support for static routing, and IPv6, these switches also simplify ownership with no switch software licensing requirements.

What's new

It offers scalability with a 6-member switch virtual switching framework (VSF) stacking
It has compact and fan-less 12-port PoE model for space-constrained deployments
The CX 6100 series provides right size with 12, 24, and 48-port 1U models with convenient built-in 1/10GbE uplinks and up to 740W of Class 4 PoE
It simplifies IT operations with next-gen Layer 2 switch series that provides entry-level, reliable, and convenient wired access connectivity
The CX 6100 provides flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy to use Web GUI, or industry-standard CLI

Features

It has the flexibility to mix 24 and 48-port modular and fixed CX 6100 models.

It has a simplified configuration and management as the switches act as a single chassis when stacked.

It support for up to six switches (or members) in a stack through chain or ring topology.

It offers the flexibility to create stacks that span longer distances such as hundreds of meters across campuses to kilometers between sites.

It offers virtual switching framework (VSF) stacking - Scale and simplicity

The CX 6100 series is ready for software-defined networking with REST APIs for fine-grained programmability of network tasks.

The CX 6100 series provides right-size deployment with choice of 12, 24, and 48-port 1U models with convenient built-in 1/10GbE uplinks and up to 740W of Class 4 PoE.

The switch series delivers a simple, consistent operator experience with the HPE Aruba Networking CX Switch Operating System (AOS-CX) used across HPE Aruba Networking CX switching platforms.

The four built-in wire speed 1/10GbE uplinks mitigate bottlenecks at the access layer where users and devices connect.

It has fully-managed enterprise-class switches deliver Layer 2 capabilities with support for static routing, access control lists (ACLs), robust quality of service (QoS), traffic prioritization, sFlow®, and IPv6.

The switch series offers unified management across wired, wireless, and WAN using HPE Aruba Networking Central.

Entry-level Layer 2 access switches

It has up to 740W IEEE 802.3at Class 4 PoE with up to 30W per port supports newer Wi-Fi 7 and PoE devices.

The HPE Aruba Networking CX 6100 Switch Series provides flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy-to-use web GUI, or industry-standard CLI.

Simplified configuration and management

The HPE Aruba Networking CX 6100 Switch Series is designed with a dedicated ASIC that delivers very low latency, increased packet buffering, and adaptive power consumption needed for AI, Wi-Fi 7, and Internet of Things (IoT) requirements.

AI-ready performance and power

It simplifies ownership with no switch software licensing or subscriptions required.

It reduces manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local MAC authentication (LMA).

The HPE Aruba Networking CX 6100 Switch Series offers gigabit connectivity with high-speed uplinks and optional PoE to provide entry-level, reliable, and convenient wired access connectivity for enterprise branch office and SMB networks.

HPE Aruba Networking Switch Multi-Edit Software introduces automation that allows for rapid network-wide changes and verifies policy conformance post network updates.
