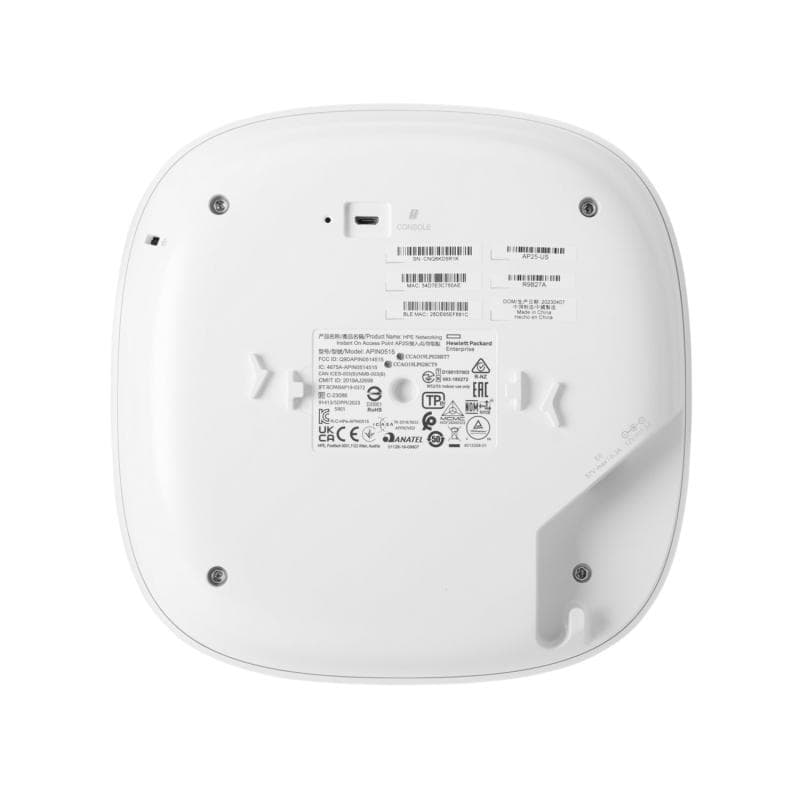

HPE Networking Instant On Access Point Bundle with PSU (WW) AP25

Lifecycle

• Obsolete Date 31-12-2099

Specifications

• Input voltage PoE: 802.3at (class 4) DC power (12V) Note: Power sources are sold separately unless you purchase the bundle SKU
• Radio coverage Dual-radio 802.11ax 4x4 5 GHz MU-MIMO 2x2 2.4 GHz MU-MIMO
• Certifications Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3
• Ports 1x 2.5 GbE Base-T uplink port DC power connector Bluetooth Low Energy (BLE) LED status indicators Reset/LED control button Kensington security slot
• Connectivity, standard Ultra-fast 802.11ax, 4x4:4
• Mounting Ceiling/Wall mount clip
• Warranty Instant On 2-year warranty includes 24X7 phone support for the first 90 days and chat support for the entire warranty period. Community support is available for the life of the product.
• Wi-Fi antenna Antennas: Dual omni-directional 4x4 MU-MIMO Antenna Gain: 3.7 dBi in 2.4GHz 4.5 dBi in 5 GHz Maximum transmit power: 5 GHz band: +24 dBm (+18 dBm per chain, 6 dB MIMO gain) 2.4 GHz band: +21 dBm (+18 dBm per chain, 3 dB MIMO gain)
• Power consumption Max power consumption (worst-case): 20.1W (PoE), 15.9W (DC)

Quickspecs

• QuickSpecs (HTML)
• QuickSpecs
• QuickSpecs (PDF)
• QuickSpecs

Overview

Wi-Fi Certified 6TM HPE Networking Instant On Access Points AP25 delivers faster Wi-Fi speeds, greater capacity, and reduced latency between access points and devices for a superior Wi-Fi experience. With the AP25, you can upgrade your Wi-Fi network to boost performance across devices now, while preparing it for more mobile and IoT devices in the future. Features include Orthogonal frequency-division multiple access (OFDMA), multi-user MIMO, and target wake time (TWT). With up to 4 spatial streams (4SS) and 160 MHz channel bandwidth (HE160), the Instant On AP25 provides outstanding wireless capabilities for businesses looking to future-proof their networks.

What's new

• Wi-Fi 6 certification supports all mandatory 802.11ax features that include MU-MIMO, OFDMA, TWT, and more
• Provides a high performance Dual Radio 802.11ax AP with 4 spatial streams (4X4) for higher capacity and coverage
• This series features maximum data rates of 4.8 Gbps in the 5 GHz band and 574 Mbps in the 2.4 GHz band (for an aggregate peak data rate of 5.3 Gbps)
• Instant On mobile app and/or cloud-based web portal allows for easy network management onsite or remotely
• Includes 2.5 Gigabit Ethernet uplink port and 160 MHz channel bandwidth for increased wireless throughput
• Support for WPA2/WPA3 protected employee and guest login with Enhanced Open for per user guest access

Features

HPE Networking Instant On Access Points AP25 comes with integrated Wi-Fi Alliance security standard WPA2/WPA3 and Enhanced Open support for protected wireless access.

Incredible Efficiency with Wi-Fi 6

The HPE Networking Instant On Access Points AP25 supports the Wi-Fi 6 standard, including features such as orthogonal frequency-division multiple access (OFDMA) and Multi-User MIMO (MU-MIMO), and Target Wait Time (TWT).

Safeguard Sensitive Data with WPA2/WPA3 and Enhanced Open

160 MHz channel bandwidth delivers increased mesh throughput and Wi-Fi speed ideal for high-def video streaming and virtual reality devices.

2.5 Gigabit Ethernet uplink port enhances wireless connectivity.

HPE Networking Instant On Access Points AP25 support features Target Wake Time (TWT) that helps establish a schedule when clients need to communicate with an access point improving efficiency for longer battery life.

HPE Networking Instant On Access Points AP25 features integrated router, gateway, and firewall functionality.

HPE Networking Instant On Access Points AP25 supports Two-Factor Authentication (2FA) for additional layer of authentication, preventing attackers from remotely accessing your networks.

The HPE Networking Instant On Access Points AP25 are 100% backward compatible, allowing businesses to support multiple clients (Wi-Fi 6) and legacy (11a/b/g/n/ac) at the same time.

Performance benefits of Orthogonal Frequency Division Multiple Access (OFDMA) are improved, meaning increased network performance and network capacity.

High-performance HPE Networking Instant On Access Points AP25 brings powerful 4 spatial streams for superior Wi-Fi coverage.

The HPE Networking Instant On Access Points AP25 delivers higher capacity, efficiency, and performance to small and growing businesses with device-dense environments.

Create up to eight different SSIDs under one network name to keep your data safe, whether surfing the web or checking HR data.

Higher Performance and Superior Coverage

Compatible products

• HPE Networking Instant On 30W 802.3at PoE Midspan Injector
• HPE Networking Instant On 12V/18W Power Adaptor US EU
• HPE Networking Instant On AP25 Flush Mount Sleeve
• HPE Aruba Networking AP-MNT-W4 White Low Profile Basic AP Flat Surface Mount Kit
• ARUBA INSTANT ON 12V POWER ADAPTER RW
• HPE Aruba Networking Foundational Care 3Y NBD Exch Instant ON Access Point SVC
