HPE Networking Instant On Switch 8p Gigabit CL4 PoE 64W 1430

Lifecycle

• Obsolete Date 31-07-2026

Specifications

• Ports 8 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10 BASE-T, IEEE 802.3u Type 100 BASETX, IEEE 802.3ab Type 1000 BASE-T) Duplex: 10 BASE-T/100 BASE-TX: half or full; 1000 BASE-T: full only
• Management features Unmanaged
• Input voltage 100-240VAC
• Warranty Limited lifetime warranty with 24X7 phone support for the first 90 days and chat support for the entire warranty duration. Community support is available for the life of the product.
• Throughput 11.90 Mpps
• Power consumption Maximum: 90W Idle: 4.1W
• PoE capability 64W Class 4 PoE
• Memory and processor 128Kb EEPROM; Packet buffer size: 2.0 Mb
• Switching capacity 16 Gbps
• Power supply External Power Adapter
• Operating temperature 0°C to 40°C, 32°F to 104°F

Quickspecs

• QuickSpecs
• QuickSpecs (PDF)
• QuickSpecs
• QuickSpecs (HTML)

Overview

The HPE Networking Instant On Switch 1430 is a plug-and-play unmanaged switch series for small businesses looking for simple, reliable, and low-cost network connectivity. These easy-to-use switches deliver Layer 2 Gigabit Ethernet switching capabilities—at an affordable price point—to help connect and share common resources like printers and access points, without any complicated network configuration. With plug-and-play operation, fully automated functions, zero ongoing maintenance, and Power over Ethernet (PoE) models, these switches deliver simple, reliable connectivity for the smallest SMBs and home offices.

What's new

• Fan-less design for silent deployment in office spaces.
• Unmanaged Layer 2 Gigabit Ethernet switch series ready to deploy in 5-, 8-, 16-, 24-and 26-port non-PoE and PoE models.
• No configuration or management needed.
• Plug-and-play with fully automated functions and zero ongoing maintenance.
• Up to 124W of PoE to power APs, IP Phones, and other IoT devices.

Features

No configuration beyond installation of optional 1 GbE SFP transceivers on 26-port model to extend connectivity with gigabit fiber.

Plug-and-Play Operation Unmanaged Ethernet Connectivity for Small Businesses

Two dedicated 1 G SFP fiber ports on the 26-port model can be used for uplinks and to support long distance connectivity using fiber transceivers, for a total of 28 Ethernet ports.

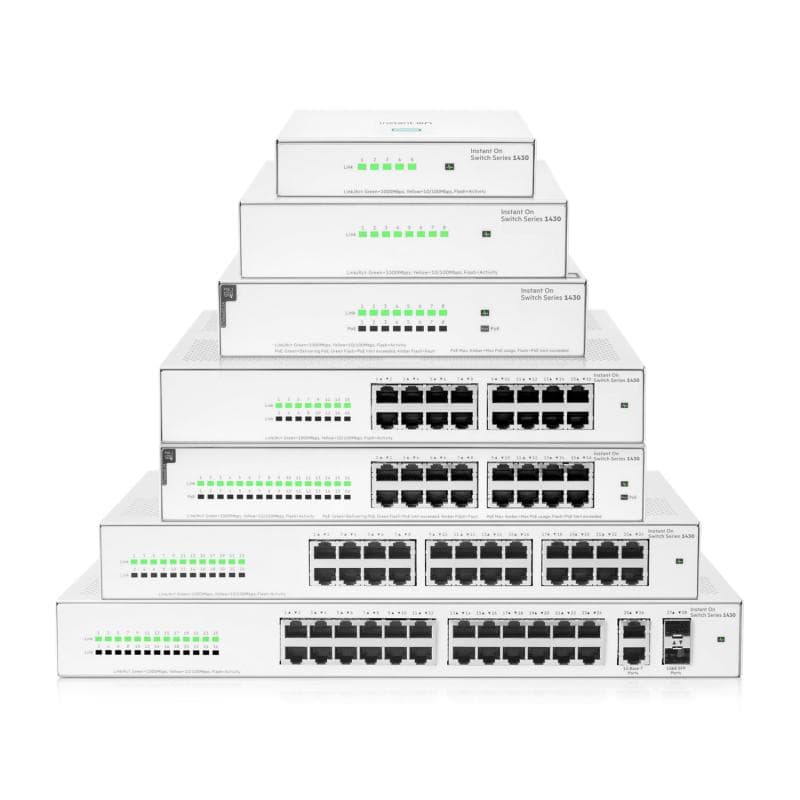

The HPE Networking Instant On Switch 1430 is an unmanaged Layer 2 Gigabit Ethernet switch series ready to deploy in seven models in PoE and non-PoE configurations: one 5-port, two 8-port, two 16-port, one 24-port, and one 26-port model with 2 SFP uplinks models.

With PoE models, you get up to 30W PoE per port power delivery for Class 4 PoE devices like access points, surveillance cameras and VoIP phones. The 8-port and 16-port PoE models come with the power budget of 64W and 124W respectively to support the latest IoT devices.

Install flexibility with support for table-top, under-table, wall-mount, and rack-mount options (varies per model).

Simplified cabling automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports using Auto MDI/MDI-X.

Energy Efficiency and Traffic Optimization

All models are fan-less for silent operation in office settings or acoustically sensitive environments and require less power to operate.

Quality of Service provides priority of time-sensitive packets (like VoIP and video) over other traffic based on DSCP or IEEE 802.1p classification.

The HPE Networking Instant On Switch 1430 series supports Energy Efficient Ethernet (EEE) and is compliant with 802.3az standard requirements to save energy during periods of low data activity.

Jumbo frame support provides up to 9216 bytes frame size to improve the performance of large data transfers.

Flow control provides a flow-throttling mechanism propagated through the network to prevent packet loss at a congested node.

The HPE Networking Instant On Switch 1430 models are easy to use with zero configuration and no required ongoing administration.

The unmanaged PoE models delivers fully automated support for powering compatible IP phones, video surveillance cameras, or wireless access points.

Compatible products

• HPE Aruba Networking 1G SFP LC LX 10km SMF Transceiver
• Aruba IOn 1G SFP LC SX 500m MMF XCVR
