HPE

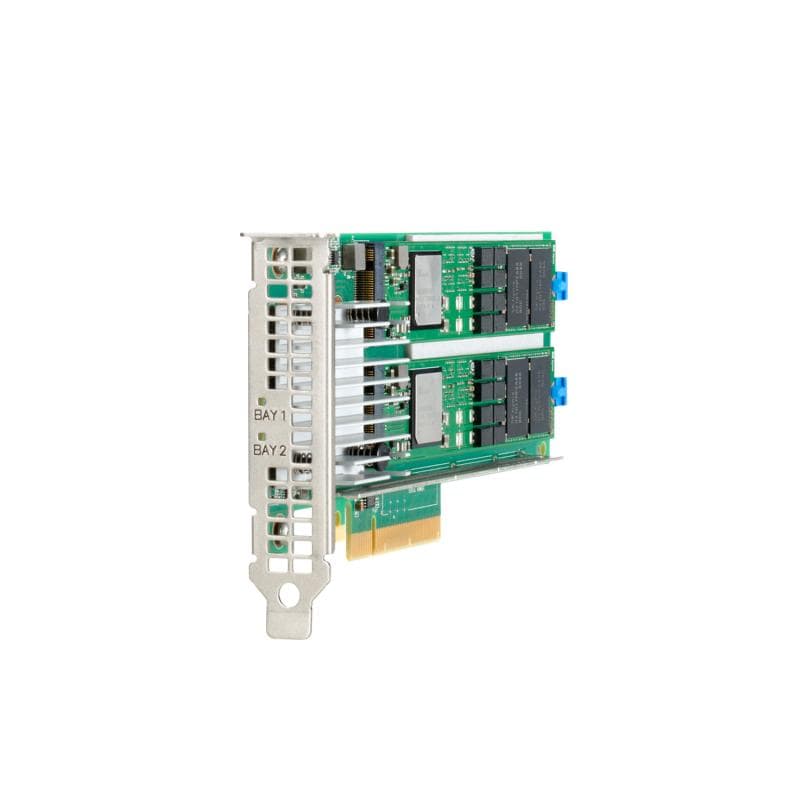

HPE NS204i-p x2 Lanes NVMe PCIe3 x8 OS Boot Device

Name: HPE NS204i-p x2 Lanes NVMe PCIe3 x8 OS Boot Device
Brand: HPE
SKU: P12965-B21
Price: 16790.99 RON
Availability: OutOfStock

Cod: P12965-B21EAN: 190017354101

HPE NS204i-p NVMe PCIe3 OS Boot Device

16.790,99 RON

TVA inclus

Stoc epuizat

Livrare expres prin FAN Courier sau GLS

Drept de retur în 14 zile calendaristice

Garanție: 36 luni (pers. fizice) · 12 luni (pers. juridice)

Lifecycle

Obsolete Date 31-12-2028
End of support date 31-10-2028

Specifications

Form factor (fully configured) PCIe HHHL card, mezzanine or 1U riser
Capacity 480 GB
RAID levels Preconfigured hardware RAID 1
Platform supported HPE Compute Mainstream Platforms, see QuickSpecs for more information
Warranty 3 Years Parts
Form factor PCIe half-height, half-length (HHHL) card
PCIe support Gen3
Maximum drives supported 2, included in kit
Compliance RoHS, Lot 9
Drive supported 2280 M.2 NVMe SSD, included with kit

Quickspecs

Overview

Do you need to simplify data segregation? HPE Boot Device Options offer enterprise customers turnkey, resilient boot solutions that easily segregate the OS from the data storage plane in today’s popular OS for virtualized environments—VMware®, Linux®, Windows. NS204i presents itself to your management interface as a single directly connected NVMe drive, not a RAID controller. As the NS204i is a hardware boot device, only RAID 1 mode is supported and it will not operate in any other RAID mode. NS204i is plug-and-play with no need to configure or manage the device. Always ensure you are running the latest HPE iLO version and update server BIOS, FW and drivers when they become available.

What's new

Hot-plug universal installation (No longer requires a PCIe slot)
Utilizes native in-box OS NVMe drivers
Two HPE enterprise-class 960 GB NVMe M.2 SSDs
Dedicated hardware RAID 1 OS boot device
No cables or backplanes required

Features

It has integrated on-board RAID 1 for customers requiring dual boot solutions.

HPE Boot Device Options is a complete, turnkey optimized that is easy to deploy—no need to configure or format, simply insert and it works, no GUI or user setup required.

Simple and Secure OS Mirroring Through Dedicated Hardware RAID 1

HPE Boot Devices are certified for VMware and Microsoft Azure Stack HCI for increased flexibility.

Full Hardware RAID 1 Boot Solution for VMware Environments

It is engineered with enterprise-class high-endurance NAND for non-stop data center environments.

State-of-the-Art, Hardware Accelerated RAID 1 NVMe Boot Device

HPE enterprise-class NVMe M.2 SSDs deliver enhanced data protection with power loss protection and error correction.

Increased Storage Density and Dedicated Hardware RAID 1 Resiliency for Boot Device

HPE Boot Device Options provide separate, redundant disk solutions for the OS that enables a more robust, optimized compute platform.

Dedicated hardware RAID 1 boot device mirroring helps eliminate downtime due to a failed OS drive—even if one drive fails the business continues running.

It enables all drive bays to be used for data, greatly reducing server complexity, while providing an economical way for booting in virtualized environments.

It uses native in-box drive support for VMware, Linux, and Windows OS.

Pre-configured RAID 1 boot device utilizing a dedicated internal slot, or rear or front facing installation. For Gen10 plus servers, the boot device utilizes a PCIe slot.
