Lifecycle

Obsolete Date 28-02-2027
End of support date 31-10-2028

Specifications

Warranty The warranty for this device is 3 years parts only.
Transfer rate 12Gb/s SAS per lane 6Gb/s SATA per lane PCI Express 3.0 x8 lane width
Form factor Type-a modular controller
Ports Internal: 8 SAS lanes across 2 x4 Mini-SAS ports
Additional features HPE Smart Array SR Secure Encryption (optional license) HPE Smart Array SR SmartCache (optional license)
Cache 2 GB Flash-Backed Write Cache
Servers supported HPE ProLiant DL360 Gen10 HPE ProLiant DL380 Gen10 HPE ProLiant ML350 Gen10 HPE ProLiant XL450 Gen10
Certifications FIPS 140-2 Level 1 Implementation Under Test with expected validation in 2018
SATA speed 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM

Quickspecs

Overview

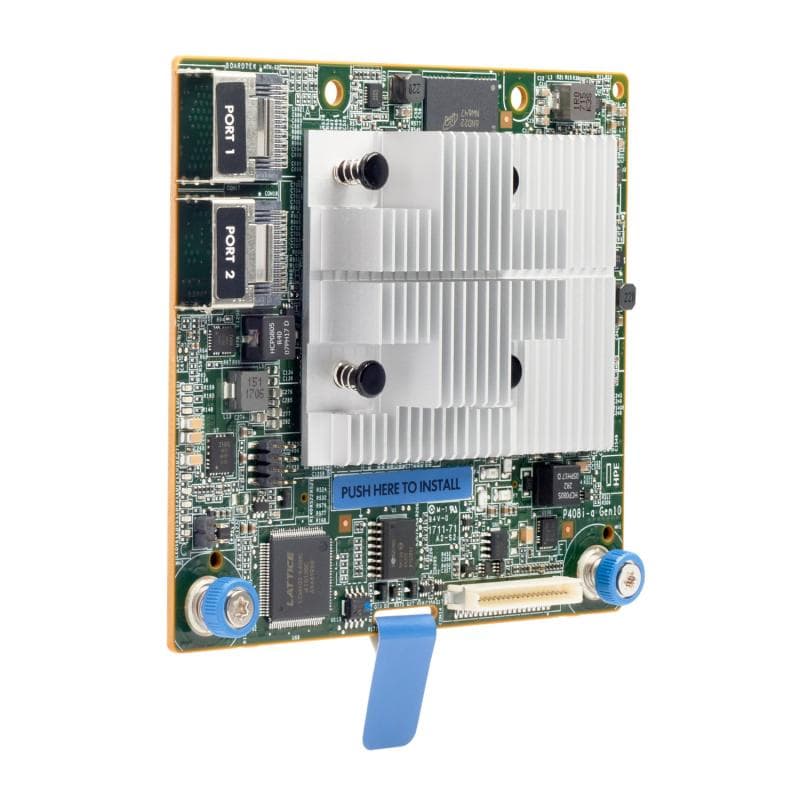

Are you looking for an enterprise-level controller to maximize performance and storage capacity without occupying a PCI Express (PCIe) expansion slot? The HPE Smart Array P408i-a SR Gen10 Controller, supporting 12 Gb/s SAS and PCIe 3.0, provides enterprise-class storage performance, reliability, security and efficiency needed to address your evolving data storage needs. This controller has eight internal SAS lanes, allowing connection to SAS or SATA drives, supports Mixed Mode operations of RAID and HBA simultaneously, and offers encryption for data-at-rest on any drive. The Smart Array P408i-a SR Gen10 Controller is ideal for maximizing performance while supporting advanced RAID levels with 2 GB Flash-Backed Write Cache (FBWC). This type-a modular controller occupies a dedicated storage slot without occupying a PCIe expansion slot. The Gen10 controllers are supported by the HPE Smart Storage Battery. The HPE Smart Storage Battery supports multiple devices and is sold separately.

Features

Increased Performance for Faster Data Insights

The HPE Smart Array P408i-a SR Gen10 Controller is an enterprise-class RAID controller that increases performance in messaging, database, or general server applications and delivers 12 Gb/s SAS connectivity on HPE ProLiant Gen10 Servers when connected to 12 Gb/s internal storage devices.

Increases performance with 2 GB Flash-Backed Write Cache and reduces latency in write-intensive applications that require heavy logging such as databases.

Enhances performance in storage environments where data is read repeatedly from a large number of SSDs by using HPE SSD Smart Path to create a faster I/O path between the controller and SSD.

Accelerate access to data in HDD environments by caching hot data onto SSDs with HPE Smart Array SR SmartCache (optional license).

Quickly set up, configure, and manage drives attached to the controller with HPE Smart Storage Administrator (SSA), an intuitive interface used to create RAID volumes, manage advanced controller features, and deploy Smart Array solutions.

Rapidly configure simple RAID volumes on servers with the UEFI storage configuration tool, which also facilitates scripting support to configure an array via iLO through RESTful interface.

The HPE Smart Array P408i-a SR Gen10 Controller has increased flexibility with Mixed Mode which operates in RAID and HBA simultaneously and eliminates the expense of having to purchase another controller.

Improved Efficiency and Storage Management

Long-term data retention with 2 GB Flash-Backed Write Cache for improved data reliability.

Preserve data integrity with HPE SmartSSD Wear Gauge, which alerts you to potential drive issues before a drive fails.

Comply with regulations for sensitive data, such as HIPAA and Sarbanes-Oxley with HPE Smart Array SR Secure Encryption—FIPS 140-2 Implementation Under Test with expected FIPS 140-2 Level 1 validation complete in 2018.

The HPE Smart Array P408i-a SR Gen10 Controller protects data-at-rest on any drive attached to the controller with HPE Smart Array SR Secure Encryption (optional license).

Built-in Reliability and Security
