HYXI

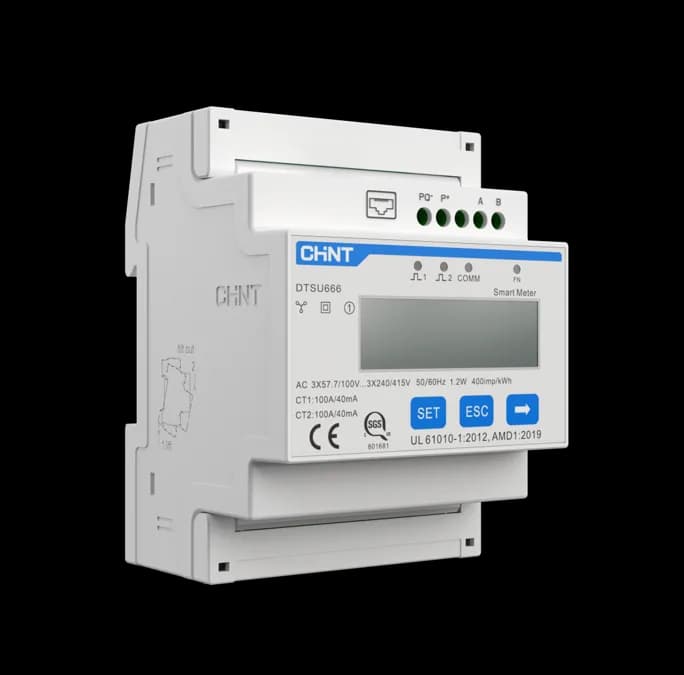

HYXi 3P Smart Meter DTSU666-250A
Cod: HYX-DTSU666-250AEAN: 6977211610813
HYXi 3P Smart Meter DTSU666-250A
Specificații principale
| Tip | Smart Meter |
603,99 RON
TVA inclus
În stoc
Termen de livrare: 2-3 zile lucrătoare
1
Livrare expres prin FAN Courier sau GLS
Drept de retur în 14 zile calendaristice
Garanție: 24 luni (pers. fizice) · 12 luni (pers. juridice)
"Measurement:
-Compliance with EN 61326-1 EN 61010-1 standard
-Connection type: 3P4W(Three Phase four wire)
-Access Method:Via CT
Accuracy:
-Voltage: ±0.5%
-Current/Power:+0.5%
-Electric energy: +1%
Voltage:
- Nominal Voltage(Un): 3x220/380V...3×240/415V
-Operating Voltage: 207V ~ 253V
-Limited Voltage:184V ~ 264V
Current: 250A/50mA
Frequency: 50Hz or 60Hz
Display Interface:
-LCD
-With backlight
LED Indication: Pluse Output
Communications:
-Protocols: ModBus-RTU
-Interface: RS485
-Baud rate: 1200/2400/4800/4800 / 9600bps(default)19200/115200 bps(customizable)
Measured Values:
-Import/Export kWh, kvarh
-Instantaneous kW, kvar, kVA
-Irms, Vrms, Frequency, Power factor,etc
Environmental:
-Operating Temperature : -25°C~+55°C
-Storage Temperature : -40°C~ +70°C
-Relative Humidity: ≤95%(non-condensing)
-Atmospheric Pressure: 63.0kPa ~ 106.0kPa
Dimension:
-72mm×100mm×65.5mm
-Mounting Type:DIN35mm"
Produse similare
HUAWEIHUAWEI SMART POWER SENSOR SMARTPS-100A-S0, 1-PHASE, 100A
În stoc
Livrare: 2-3 zile lucrătoare
412,99 RON
SOLPLANETSolplanet EASTRON SDM230-Modbus, 1p (L1, N), max. 100A, Modbus, direct connected AC wires.
În stoc
Livrare: 2-3 zile lucrătoare
499,99 RON

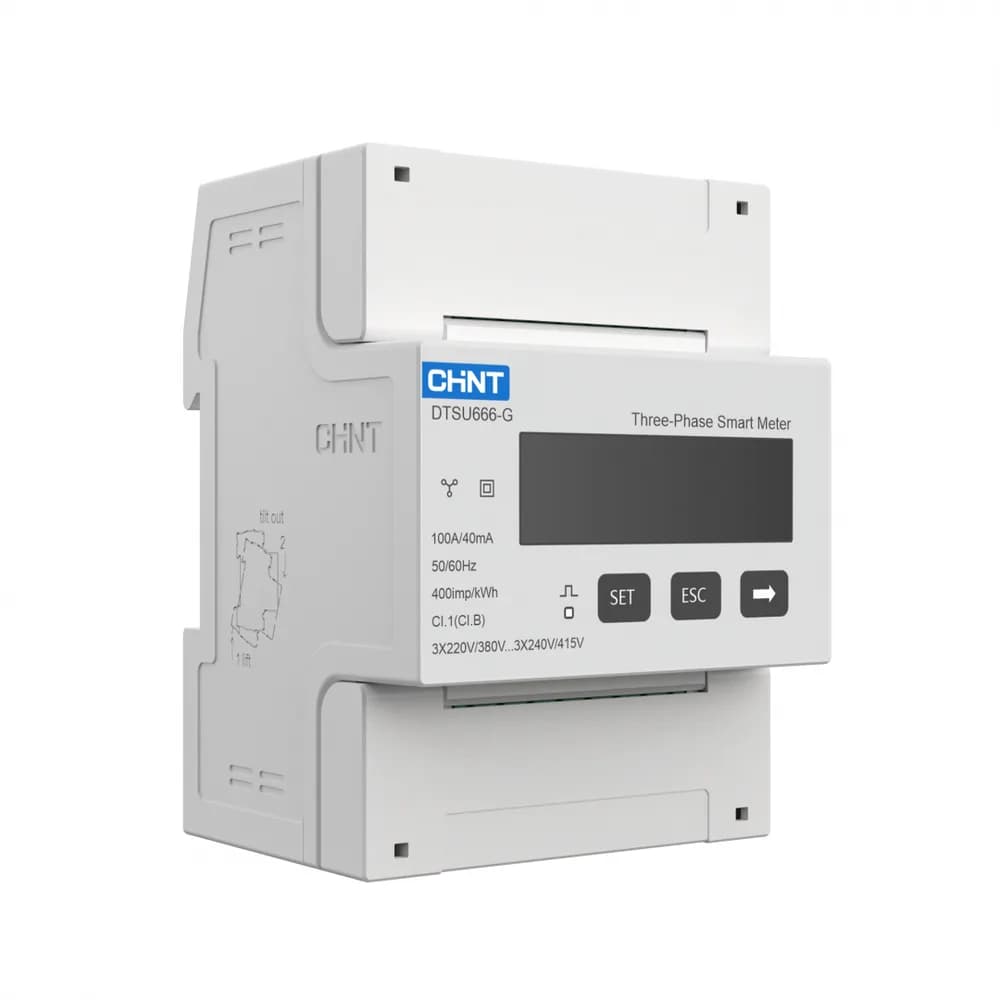

SOLPLANETSolplanet CHINT DTSU666, -25℃～+55℃ CHNT DTSU666 3*220/380V 100A/40mA 115200bps
