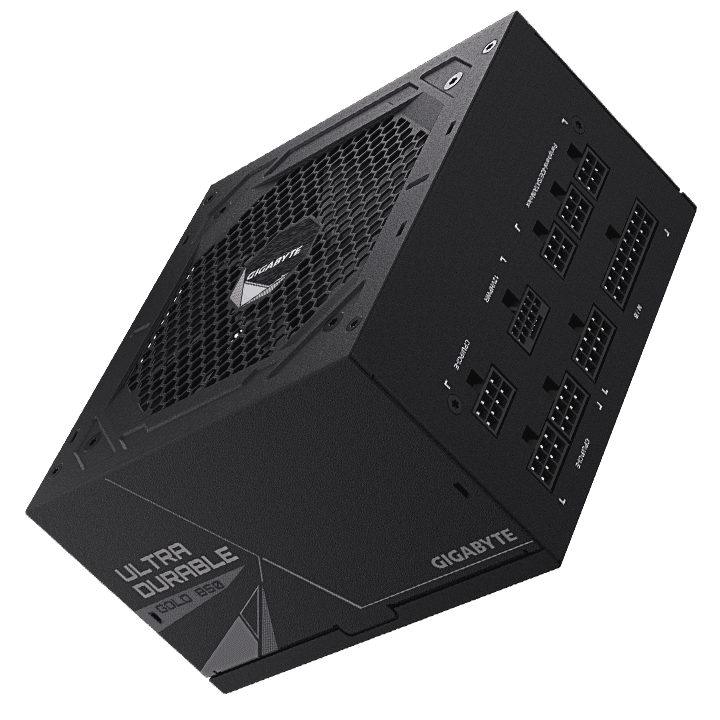

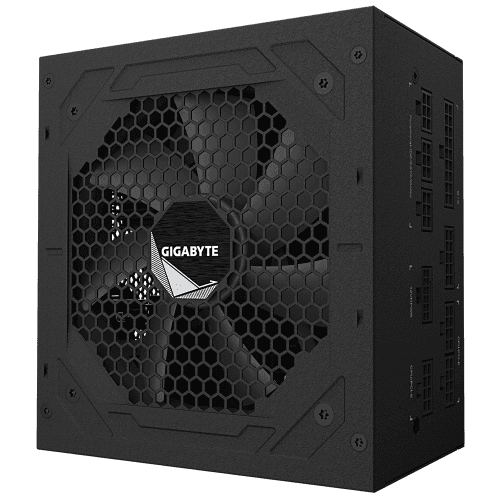

Sursa GIGABYTE GP-UD850GM PG5, 80+ Gold, 850W

Sursa GIGABYTE GP-UD850GM PG5, 80+ Gold, 850W de la GIGABYTE, din categoria Surse PC. Caracteristici principale: tip psu: ATX, tip cooling: Active, număr fans: 1 fan(s), illumination: No, diametru ventilator: 12 cm, mean time between failures (mtbf): 100000 h.

Specificații tehnice

• Tip PSU: ATX
• Tip Cooling: Active
• Număr fans: 1 fan(s)
• Illumination: No
• Diametru ventilator: 12 cm
• Mean time between failures (MTBF): 100000 h
• Certificare 80 Plus: 80 PLUS Gold
• Modular: Yes
• Motherboard power connector: 20+4 pin ATX
• PCI Express power connectors (6+2 pin): 4
• CPU power connector (4+4 pin): Yes
• ATX power connector (20+4 pin): Yes
• PCI Express connector: Yes
• Power supply unit (PSU) form factor: ATX
• Fan location: Top
• Combined power (+5Vsb): 15 W
• Max output current (+5Vsb): 3 A
• Number of SATA power connectors: 8
• Motherboard power cable length: 61 cm
• Cabling type: Fully-Modular
• Power Factor Correction (PFC) type: Active
• Max output current (+3.3V): 20 A
• Max output current (+5V): 20 A
• Cable tie(s) included: Yes
• Efficiency: 90%
• PCI Express power connectors (16-pin): 1
• Peripheral (Molex) power connectors (4-pin): 2
• PCI Express power cable length: 70 cm
• Hold time: 16 ms
• Funcții Power protection: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
• Total power: 850 W
• Max output current (+12V): 70.8 A
• Combined power (+12V): 850 W
• Input current: 12 - 6 A
• Number of PATA power connectors: 3
• Maximum input current (@110V): 6 A
• Maximum input current (@220V): 12 A
• Combined power (+3.3V): 105 W
• Combined power (+5V): 105 W
• SATA power cable length: 150,600 mm

Produs nou, sigilat, livrat cu factură fiscală. Garanție 36 luni pentru persoane fizice. Pentru consultanță sau o ofertă personalizată, echipa Doctor PC îți stă la dispoziție.
