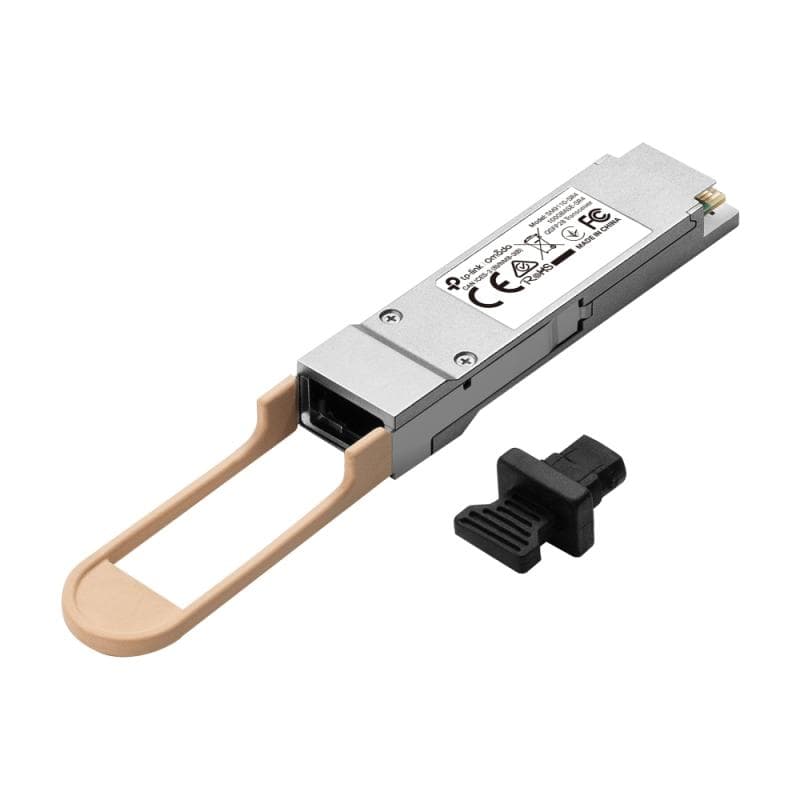

Transceiver TPL Omada 100GBASE-SR4 QSFP28 SPEC: Dual Rate 103.125Gbps and 41.2Gbps, 850nm MMF (Multimode fiber), MTP/MPO-12, 100m Distance @OM4 at 103.125Gbps (70m Distance @OM3 at 103.125Gbps, 150m Distance @OM4 at 41.2Gbps) FEATURE: Support DDM, Built-in CDR, Hot Swappable

Transceiver TPL Omada 100GBASE-SR4 QSFP28 SPEC: Dual Rate 103.125Gbps and 41.2Gbps, 850nm MMF (Multimode fiber), MTP/MPO-12, 100m Distance @OM4 at 103.125Gbps (70m Distance @OM3 at 103.125Gbps, 150m Distance @OM4 at 41.2Gbps) FEATURE: Support DDM, Built-in CDR, Hot Swappable de la TP-LINK, din categoria Accesorii switch-uri. Caracteristici principale: switch-cm-type: SFP, maximum operating temperature: 70 °C, plug and play: Yes, umiditate de depozitare: 0 - 85%, minimum operating temperature: 0 °C, sfp transceiver type: Fiber optic.

Specificații tehnice

• Switch-CM-Type: SFP
• Maximum operating temperature: 70 °C
• Plug and Play: Yes
• Umiditate de depozitare: 0 - 85%
• Minimum operating temperature: 0 °C
• SFP transceiver type: Fiber optic
• data transfer rate (maxim): 100000 Mbit/s
• Tip Interfață: QSFP28
• Multi-mode fiber (MMF) supported: Yes
• SFP transceiver standard: SR4
• Wavelength: 850 nm
• Single-mode fiber (SMF) supported: No
• Maximum transfer distance: 150 m
• Digital Diagnostics Monitoring (DDM): Yes
• Fiber cable diameters supported (core/cladding): 50/125 µm
• Data transfer rate: 100000 Mbit/s
• Fiber optic connector: MPO-12, MTP
• Tx power (min): -8.4 dBmW
• Tx power (max): 2.4 dBmW
• Tip Ethernet interface: 40 Gigabit Ethernet, 100 Gigabit Ethernet
• Standard Networking: IEEE 802.3ba, IEEE 802.3bm
• Fiber ethernet cabling technology: 40GBASE, 100GBASE
• Lățime: 124 mm
• Temperatură de depozitare: -40 - 85 °C
• Umiditate de funcționare: 0 - 85%
• Temperatură de funcționare: 0 - 70 °C
• Țara de origine: China
• Certificate de conformitate: CE, Federal Communications Commission (FCC), RoHS
• Înălțime: 117 mm
• Culoare: Metallic
• Adâncime: 18.4 mm
• Certificare: QSFP28 MSA, SFF-8665, SFF-8636, SFF-8436, CPRI, eCPRI, TCP/IP
• Tensiune de intrare: 3.3 V

Produs nou, sigilat, livrat cu factură fiscală. Garanție 60 luni pentru persoane fizice. Livrare estimată: 1 zi lucrătoare. Pentru consultanță sau o ofertă personalizată, echipa Doctor PC îți stă la dispoziție.
